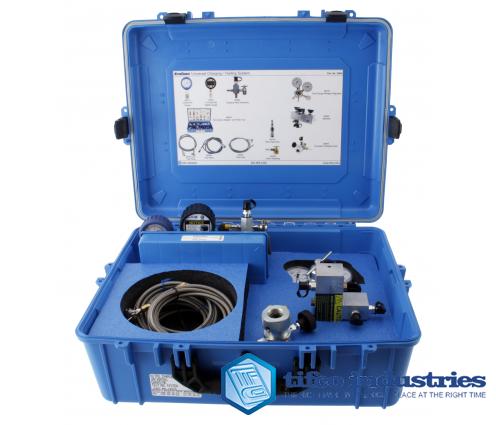

Tifco Nitrocharge® Universal Charging/Testing Kit

NITROCHARGE® Conversion Adapters allow for universal connection for testing/charging many types of accumulators. Some applications include brakes, suspensions, frame, high intensity cushion, ride control, proportion pressure control and more.

• Unique charging manifold uses positive no-leak needle valves.

• System includes a compact single charge gauging head assembly with block and bleed controls.

• European charging head complete with conversion nipples and gauge installed for efficient use in field situations.

• High quality stainless steel braided hose.

• Tank adapter is supplied for conversion from European style adapter to American style including nut and gland.

• Special adapter included to replace specific accumulator nipple with a common nipple for use with NITROCHARGE® System.

• Utility starter kit excludes manifold, regulator, and mining machine adapters

2 Kits Available:

Nitrocharge® System Kit 79626 Includes:

• • 3 Test Hose assemblies

  • 3 Pressure Gauges
    - 0-3000 PSI
    - 0-1000 PSI
    - Gauging Head Assembly

  • 9 conversion adapters
    - (2)Valve Extensions
    - (2)M12 Gas Valves
    - 1/8 Valve Assembly
    - (2)5/8-18 x SCHRAD Adapter
    - (2)1/4-19 BSPP Adapter

  • 3 nitrogen bottle adapters
    - 8S Male x CGS-5 Adapter
    - C&G Nut; CG-Gland

  • 27 special adapters
    - C3069 x 4 Steel Fitting
    - M10-1.0 Flush Face Test Nipple
    - M10-1.0  90° Hydraulic Quick Coupler
    - Manifold Assembly
    - (5)Valve Core
    - Core Tool
    - (5)HP Valve Cap
    - 5/8 European Charging Head Assembly
    - (10)Copper Washers
    - Dual Gauge Regulator Assembly

  • 1 Handy Pak (conversion adapters & Parts

Nitrocharge® Starter Kit 79627 Includes:

• • 2 Test Hose Assemblies
  • 1 Pressure Gauge: Gauging Head Assembly
  • 2 Conversion Adapters:
    - Valve Extension
    - 5/8-18 x SCHRAD Adapter
  • 17 special adapters
    - (5)Valve Core
    - Core Tool
    - 5/8 European Charging Head Assembly
    - (10)Copper Washers

Kits ship directly from Tifco.
