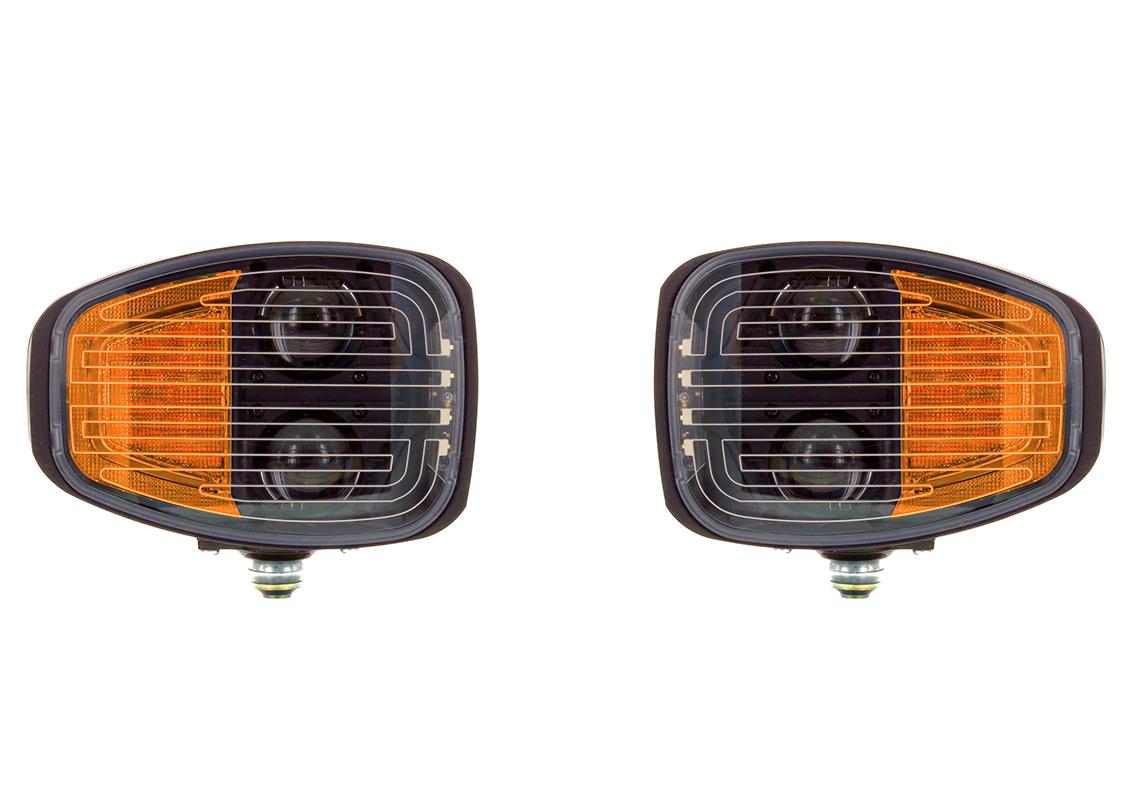

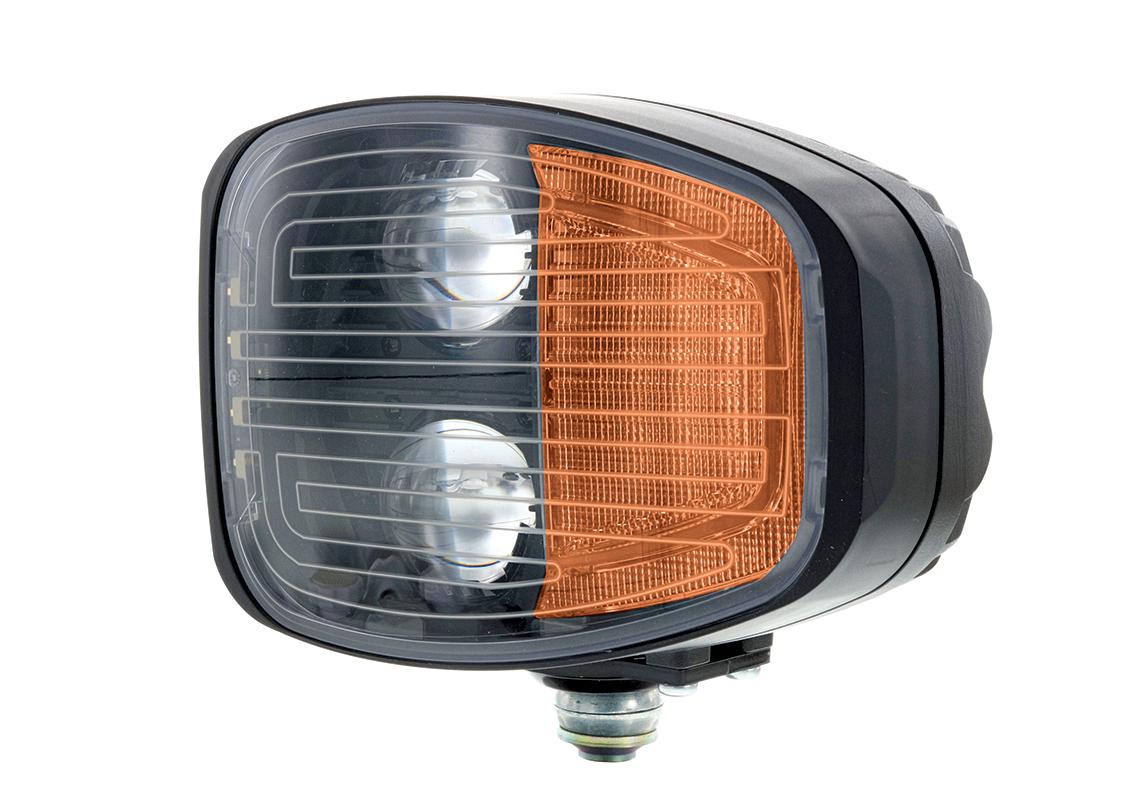

3800 LED Snow Plow Combination Lights, CHL2

The CHL2 LED is the whole new ABL High-Low Beam combination Headlight from VIGNAL GROUP.

The products offers better output, improved photometry while introducing a unique feature, the active and autonomous de-icing! Active de-icing allows the CHL2 LED to automatically detect the presence of frost/snow (by measuring the lens temperature) and activate the de-icing resistance to turn it off once the frost/snow has been removed.

In addition, the EMC has been upgraded to CISPR 25 Class 5 and the CHL2 LED is available in ECE and SAE version.

CHL2 LED is a pre-assembled ready to be installed which reduces installation time for OEM and aftermarket.

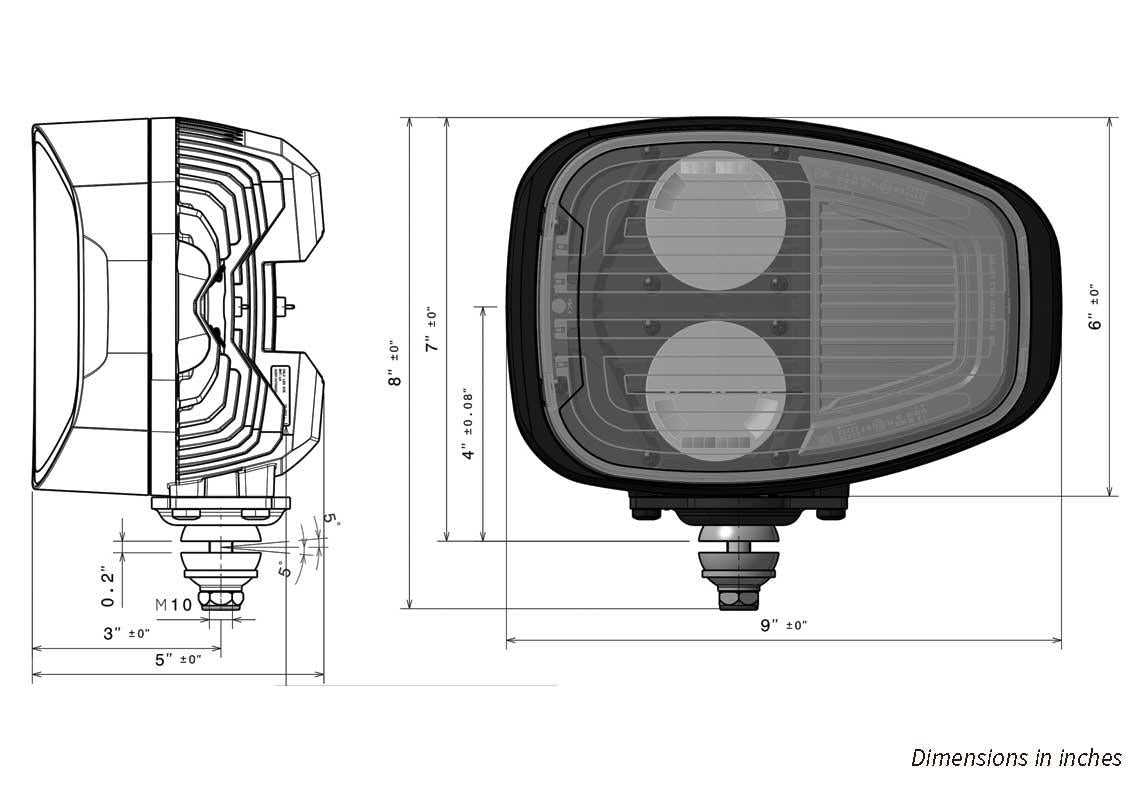

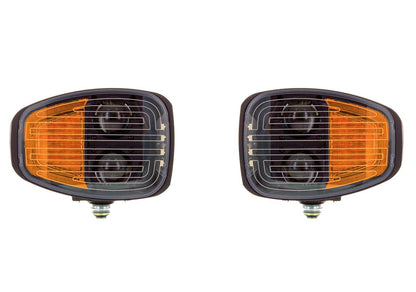

CHL2 LED is a plug and play, allowing the easy upgrade from Halogen or CHL1 LED version (same overall dimensions, mounting and connector pinout). SAE/DOT Approved. Universal solution for heavy duty, snow plow, specific machines. Sold as a set of 2 with harnesses.

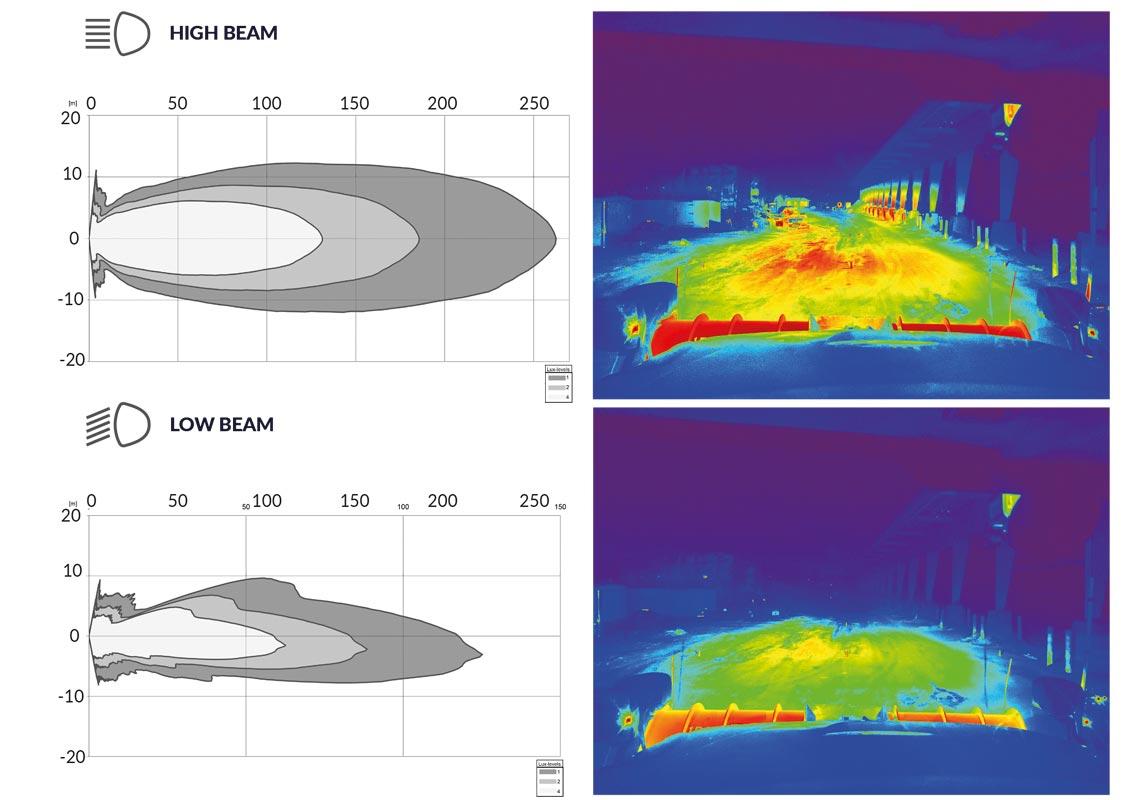

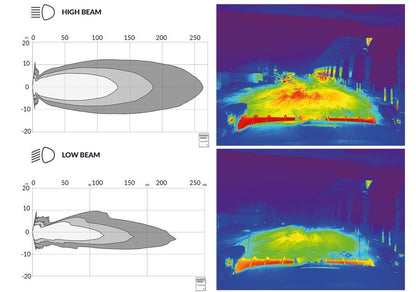

• Functions: Low Beam / High Beam / Turning indicator & repetitor / Position light / DRL / Active de-icing
• Connector: DT 6 pin (plug & play with previous H4 & LED version)
• Consumption at 24V:  Low beam 30 W / Low beam + De-icing 50 W / High beam 60 W / High beam + De-icing 80 W /Turn indicator 16 W / Position light 5 W / DRL 16 W
• Voltage: Multi 12-24V
• Vibration Resistance: 15 Grms from 24 to 2000Hz

• Shock Resistance: 60 G
• EMC:
  • ISO 13766 - Earthmoving Equipment
  • ISO 14982 - Forestry/Agricultural
  • ISO 12985 - Handling Equipment
  • CISPR25 - Radio compatibility
• Load Dump: 36V continuous - 58V 300 ms - 1800 V 50 µs
• Polarity: Protected against reverse voltage
• Electronic Thermal Managment:
  • protected against over heating
• Water Tightness:
  • IP68
  • IP69K
• Operating Temp: -40°C to +85°C
• Salt Spray: ISO 9227
• Lens: Polycarbonate - built-in thermal de-icing
• Mounting: Pedestal, rear
• Warranty: 5 Years from ABL Vignal
