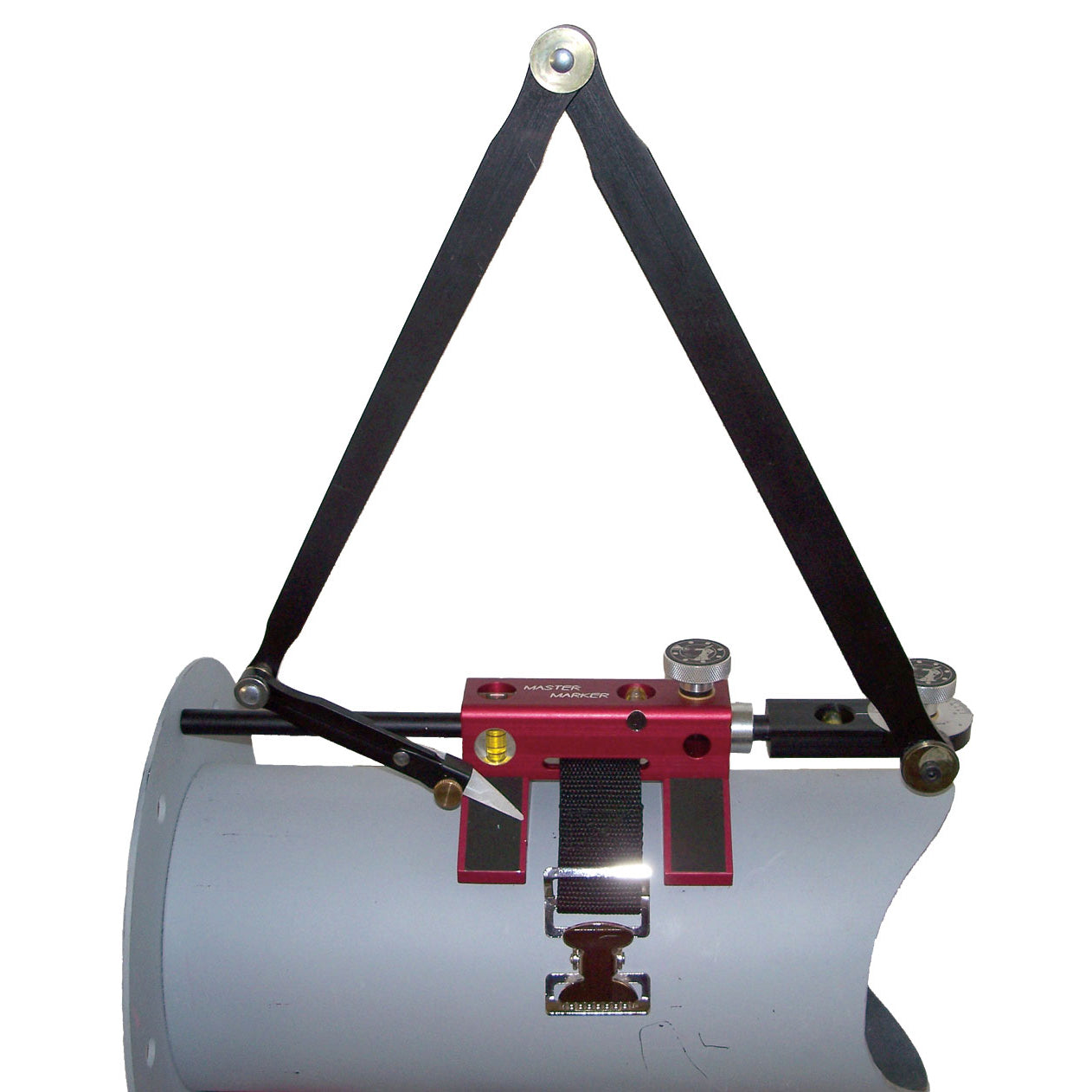

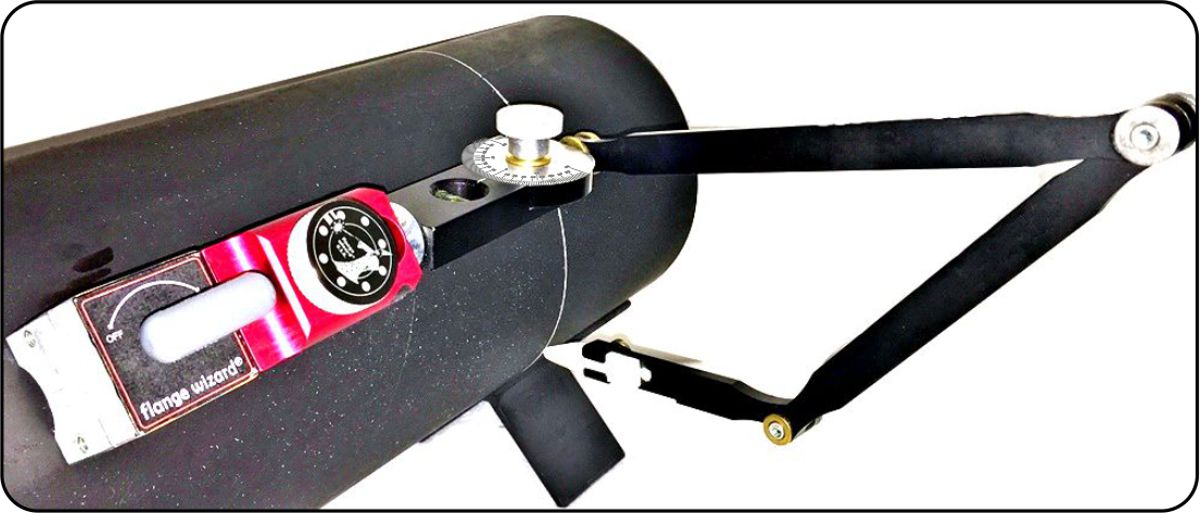

Structural beam layouts and marking angles or saddles on pipe and tubing are a snap with the Master Marker.
Replace multiple templates just with one tool.
The Master Marker comes with a unique design that allows you to telescope out over existing welds to layout angles or change the angles of pipe fittings to meet your special needs.
Redesigned marking arm is completely separate from the main body.
New on/off switch makes setting up easy and keeps the block free from debris.
It has its own 360° rotating shaft with a built-in leveling vial.
The arms have spring-loaded joints for smooth and precision operation and telescopes to eliminate uneven surface problems.
Saddles and angles on pipe and structural beams are made easy.

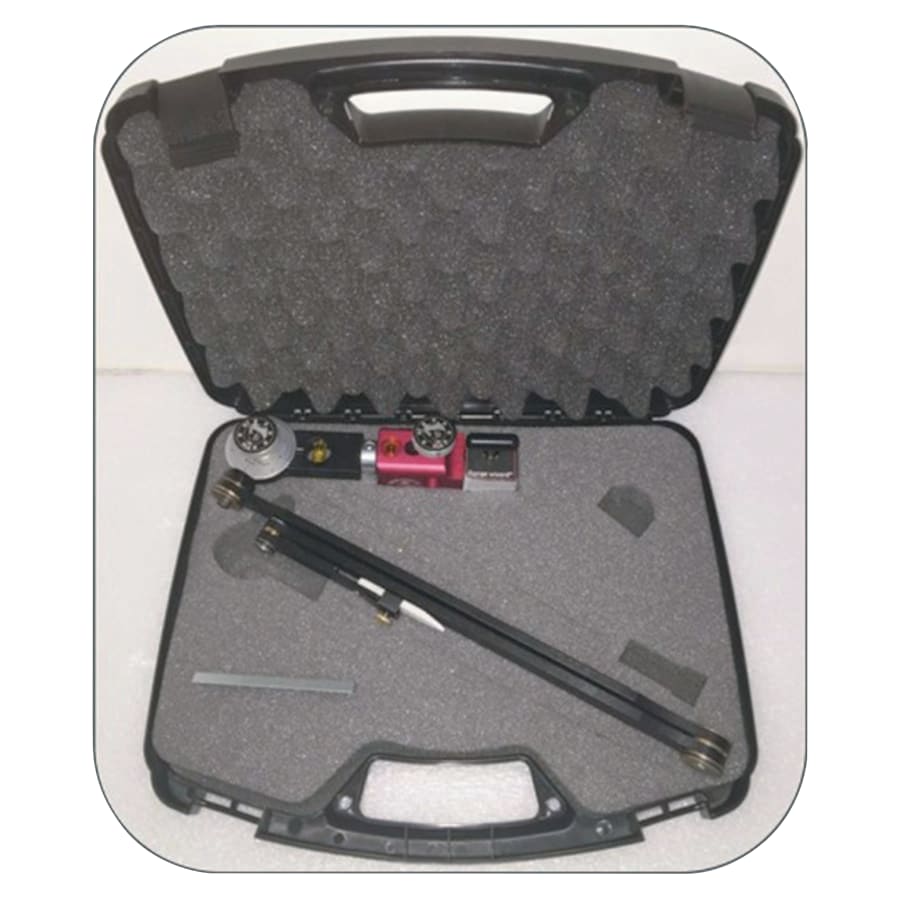

Now comes with its own carrying case
Structural Adaptor is included. Structural Adaptor aligns tool base exactly parallel to edge of structural steel beams and channel iron.
It is machined from quality aluminum material then anodized for lasting protection.
Specs
• Resistance: Rust;Corrosion;Moisture • Pipe Cap. [Min]: 8 in • Pipe Cap. [Max]: 48 in • Material: Aluminum • Includes: Base with "On and Off" Magnet; Polypropylene Case; Structural Adapter • Finish: Anodized Aluminum • Color: Black • Case Material: Polypropylene • Angle [Nom]: 360 °F
